RF Radio Module

◆ Product Details

ET-RXB-10

RF Radio Module
ET-RXB-10 Datasheet RXB10 PDF
ET-RXB-10 Datasheet RXB10 PDF

Price

  • $ 1.55 == Quantity: 10~100 Piece
  • $ 1.45 == Quantity: 1000 Piece
  • $ 1.40 == Quantity: 5000 Piece

Key Feature

Modulation Mode : ASK / OOK

Operating Frequency : 433.92 Mhz

Operating Voltage : 3.3~5.5 V

Operating Current : 3.8~4.1 mA

Data Rate : 4.8 Kbps

Sensitivity : -107 dbm

Operating Temperature : -30~+85 ℃

Working Distance : 300 m

Dimension : 33*11*5 mm

Application

RF Radio Module RXB10 related products

Car security system

Remote keyless entry

Garage door controller

Home security

Wireless mouse

Automation system

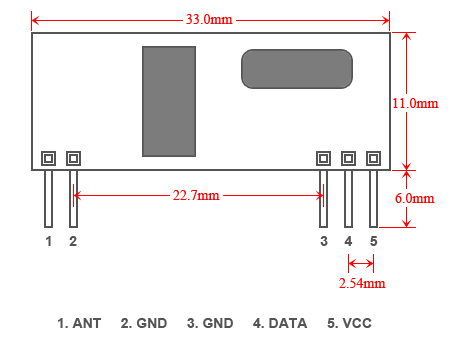

Pin Dimension


NOTE :

ET-RXB-10 Drive Current from Data-PIN is weak, if directly connection with Driving Chip which I/O can not connect Pull Up Resistor or Pull Down Resistor, Driving Chip inner Pull Up Resistor and Pull Down Resistor turn to Disabled State.
